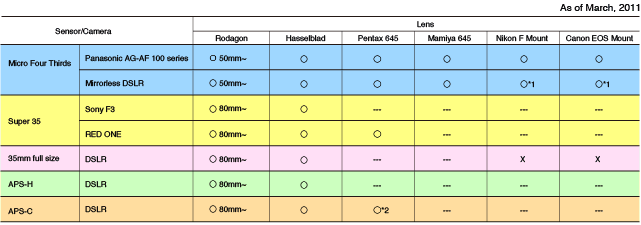

Available lenses to be used with Horseman TS-Pro allowing tilts and shifts.
Remarks:

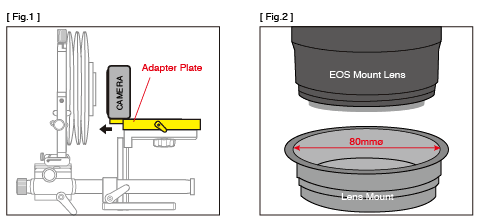

*1 : Covers full image area with movements and allows infinity focus. [ Fig.1 ]
*2 : May have an interferance against a large grip area of camera.
--- : Can focus within short distance, but does not allow infinity focus.
X : Unable to use technical movements and does not allow infinity focus.
• Please be aware that a larger rear lens barrel of Canon EOS mount lens may not be mounted on the lens mount due to its excess diameter of lens. [ Fig.2 ]
*2 : May have an interferance against a large grip area of camera.
--- : Can focus within short distance, but does not allow infinity focus.
X : Unable to use technical movements and does not allow infinity focus.
• Please be aware that a larger rear lens barrel of Canon EOS mount lens may not be mounted on the lens mount due to its excess diameter of lens. [ Fig.2 ]
![[ Fig.1 ][ Fig.2 ]](img/lense_fig.gif)
