HORSEMAN TS-pro

HORSEMAN TS-pro

Controling bokeh effects by utilizing tilt/shift techniques.
You can effectively control bokeh (out-of-focus) effects
with tilt/shift techniques for creative imaging. The TS-Pro allows you to use tilt/shift techniques with conventional taking lenses.

Controling bokeh effects by utilizing tilt/shift techniques.You can effectively control bokeh (out-of-focus) effects with tilt/shift techniques for creative imaging.The TS-Pro allows you to use tilt/shift techniques with conventional taking lenses.

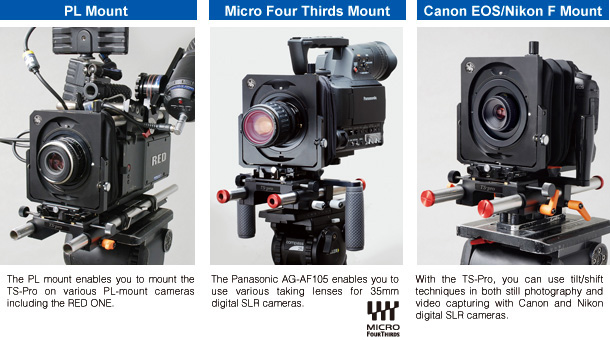

Four types of camera mounts to support various cameras

Four types of camera mounts to support various cameras
The HORSEMAN TS-Pro is used via lens mount placed between the camera and the lens. Camera mounts are interchangeable. One TS-Pro unit can be used on various cameras by adapting camera mounts suitable for camera bodies.
HORSEMAN TS-Pro offers ideal solutions for capturing video with digital and cine cameras as well as digital SLR cameras.
PL Mount /Micro Four Thirds Mount /Canon EOS/Nikon F Mount

Six lens mounts to allow using various kinds of taking lenses

Six lens mounts to allow using various kinds of taking lenses

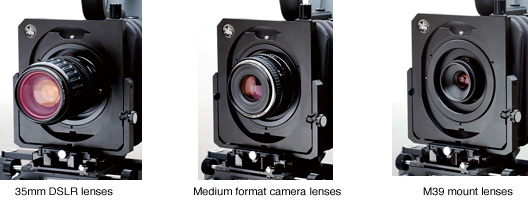

The HORSEMAN TS-Pro is designed to allow using tilt/shift techniques with conventional taking lenses. It supports various lenses for 35mm DSLRs, medium format cameras and M39 mount. When it is used in combination with a still camera lens with a large image circle, it enables the cameraman to utilize tilt/shift techniques with sufficient margins for imaging creativity that was never before possible in video application. *Lenses used for tilt/shift movements must have image circles covering cameras’ image sensor sizes.
Lens Mount
Available Lenses Available lenses to be used with Hroseman TS-Pro allowing tilts and shifts.
To pagetop ↑↑

All movements are controlled by freely moving lenses surfaces.

All movements are controlled by freely moving lenses surfaces.
The HORSEMAN TS-Pro is designed to control tilt and swing movements as well as lateral shift movements on the front lens standard. The lens and the camera is connected with a flexible bellows, which increases the freedom of lens movements. In addition, it enables you to change magnification ratios for macro imaging easily by taking advantage of bellows flexibility, without moving the tripod.

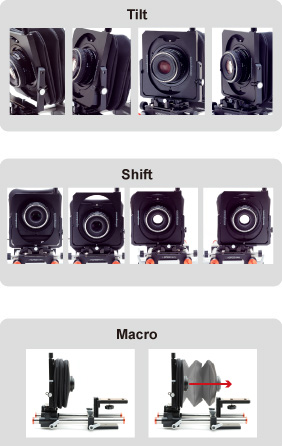

Tilt / Shift / Macro

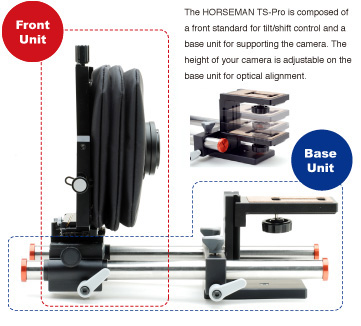

Front Unit / Base Unit
Let’s view the effects of tilt/shift control techniques.
To pagetop ↑↑

Specifications & Products

Specifications & Products
Type Auxiliary equipment allowing awing, tilt and shift movements
when attached to the lens mount of a camera.
Camera Movements [Tilt] : 15°forwards / 15°backwards, 15°each(L/R)
[Shift] : 30mm each(L/R) / 15mm each(Rise/Fall)
Track Extension 35mm
Camera Mount Exchangeable
Lens Mount Exchangeable
Tripod Socket 1/4 inch
Dimensions Front Unit : H220 x W170 x D60mm
Base Unit : H150 x W170 x D140mm
Diameter of Rail : 19mm Length : 225mm (An extra pair of rail is included.)
Weight Front Unit : 1.2kg
Base Unit : 1.1kg

Product Code Products
27001 Horseman TS-Pro Front Unit / Base Unit
27011 TS-Pro Front Unit
27012 TS-Pro Base Unit
27021 TS-Pro with Rodagon 50mm Front Unit / Base Unit / Rodagon 50mm / M39 Mount
27022 TS-Pro with Rodagon 80mm Front Unit / Base Unit / Rodagon 80mm / M39 Mount
Camera Mount
27031 Micro Four Thirds Mount Micro Four Thirds
27032 PL Mount
27033 Canon EOS Mount
27034 Nikon F Mount
Lens Mount
21781 Pentax 645 Mount
21782 Mamiya 645 Mount
21783 Hasselblad Mount
21787 M39 Mount
27051 Canon EOS Mount
27052 Nikon F Mount
※Horseman TS-Pro（27001） needs to have at least either one from both of lens mounts and adapter plates.
